Mikron UCP 600 Vario

 5-Axis Work Area

X-axis travel............ 23.62 in (600 mm)

Y-axis travel............ 17.72 in (450 mm)

Z-axis travel............ 17.72 in (450 mm)

B-axis travel............ - 115 / + 30

C-axis travel........... .001 x 360

Hermle UWF 721

4-Axis Work Area

X Axis........................................ 19.7" (500 mm)

Y Axis........................................ 14.2" (360 mm)

Z Axis........................................ 15.7" (400 mm)

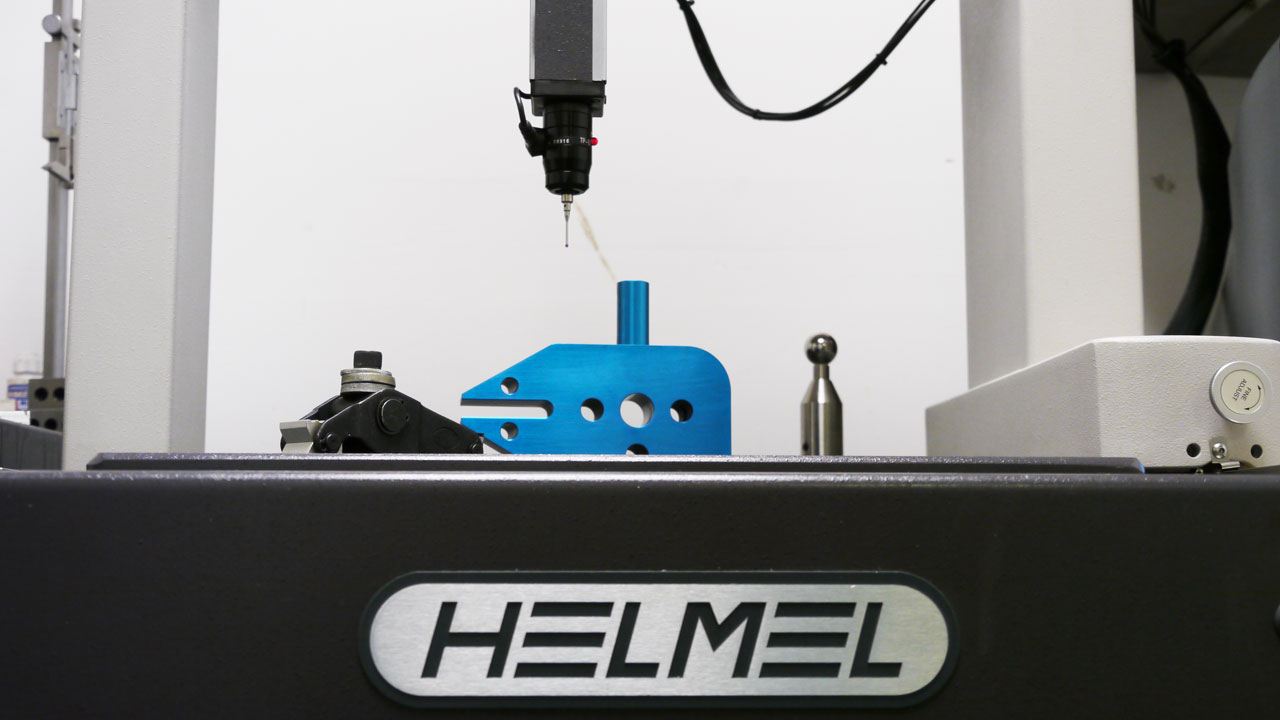

Helmel Checkmaster

Measuring Range

 X   400mm (16")

 Y   500mm (20")

 Z   350mm (14")

 .5µm (.000020”) Resolution




 CEMB VTB15

Technical Specifications

Maximum Weight Capacity…………………….… 44 lbs.

Minimum Weight Capacity…………………….…. 8 oz.

Maximum Rotor Diameter……………………….... 9.4 inches

Maximum Rotor Height Above Spindle…….… 13.7 inches

Balancing Speed ……………………………………..… 650 RPM

Maximum Sensitivity

            1 Plane………………………………………….  .0005 oz-in

            2 Plane………………………………………….  .001 oz-in

Motor ………………………………………………………. 12 HP
